complementary accessories

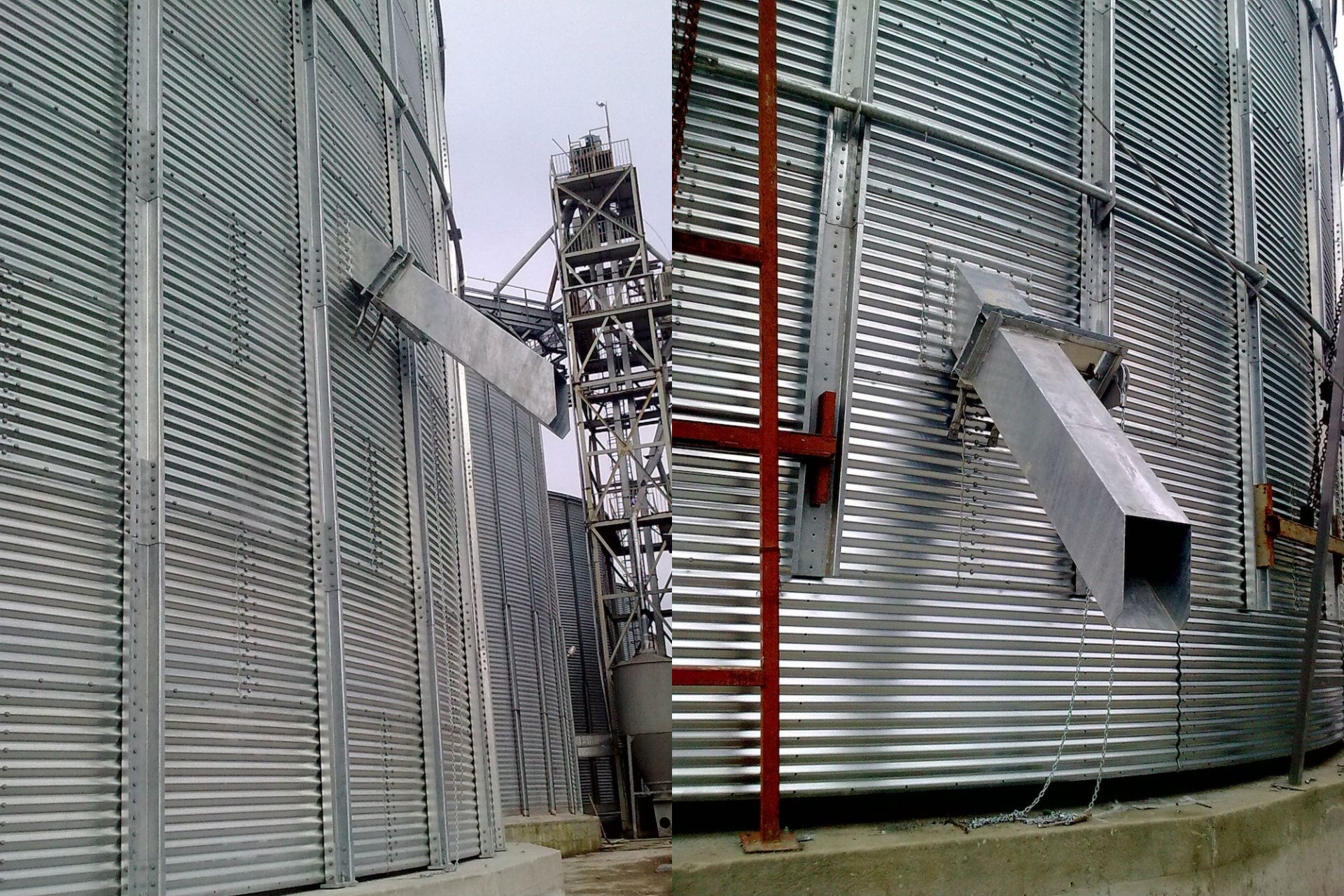

GRAVITY SIDEWALL DISCHARGE

gravity sidewall discharge Chain operated gravity side wall discharge outlets to provide direct loading into trucks together with the necessary additional reinforcing rings, access platforms & ladders can be supplied to suit most models of FP silo at additional cost.

SNOW BARRIERS

To meet requirements in certain geographical areas, snow barriers, manufactured from perforated, profiled galvanised steel, to be fitted at the eaves of the silo can be offered.
To meet requirements in certain geographical areas, snow barriers, manufactured from perforated, profiled galvanised steel to be fitted at the eaves of the silo can be offered. Especially realized to prevent snow from falling causing several damage, these structures ensure structural integrity withstanding wind loading and severe conditions.

GRAIN LADDERS

To reduce the risk of damage to soya beans & other similar cereals when loading the silo, sidewall & centre mounted Grain Ladders can be supplied.
AGI FRAME design of grain ladders is a sidewall version realized to prevent mechanical impact of the incoming grain against the silo bottom causing the creation of dust & cracks. This system is especially designed to reduce/nulliffy the grain free fall distances and rapidity while protecting the product.
Advantages:
Reduction risk of product stuck during central gravity discharge
Improvement of silo aeration
Bolted securely to the silo

AGI FRAME grain ladders also have the following specifications:
Capacity ranging from 50 to 100 t/h for a single chute
Completely self supporting system
(Grain ladders can be mounted any time after silo erection without needs of additional reinforcements to silo constitution or silo roof)
Available in both bolted or welded version

more details

Access Ladder & Platform To Sidewall Discharge Slide

ENGINEERED TO SUIT YOU

Commercial
Silos

As standard, the AGI FRAME range of FP silos from the model FP 04 to the model FP 35, & the FC 04 & FC 16 are designed for 10 no. fill & empty cycles per year, however, for Commercial applications it may be necessary to allow for far greater fill/empty frequencies & AGI FRAME can accommodate this higher specification, based on whichever design standard, ASAE/ANSI, DIN 1055 Part 6 or Eurocode, has been requested.

Farm
System

Designed for a maximum of 10 no. fill/empty cycles per year but otherwise available to the same design standards, specifications & even in the same capacities if required, the main difference between the AGI FRAME range of FP Farm & Commercial silos is with regard to the accessories.

Steel
Structures

AGI FRAME can also provide fully integrated solutions for steel structures; this includes machine & supporting towers, heavy duty catwalks etc. galvanized & bolted construction for ease of assembly on site.

Aeration
System

The quality of the stored product is maintained by incorporating a well-designed aeration system with efficient fans and an accurate temperature monitoring system. Level, full-floor, & for smaller diameter silos, a conical aeration systems can be offered. The standard AGI FRAME aeration system is designed with an air volume of 7m3/tonne/h.
